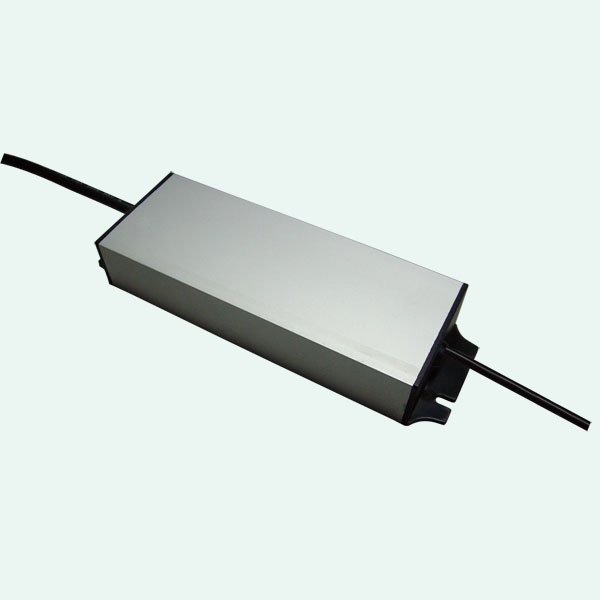

Product Type: Waterproof led power supply 12V3A/24V1.5A
- 12V 3A LED power adapter
- Input power: 100 to 240V, 50/60Hz
- Output power: 12V, 3A
- Dimension: 139 x 38 x 25mm
- Voltages: 90 to 264V AC, 47/63Hz
- Safety approvals:UL/CUL, PSE, GS, BS, CE, CB, FCC, and EK-Mark
- Protections:
- Over-voltage protection: 120% min
- Over-current protection: 120% min
- Short-circuit protection: automatic recovery
- Load regulation: ¡À5%
- Operating temperature: 0 to 40¡ãC
- Storage temperature: -20 to 85¡ã:C
- Operating relative humidity: 595% RH
- Withstanding voltage: 3,000V AC (minimum), 5mA (maximum)
- Insulation resistance: 500V DC, 100M¦¸ (minimum)
- Soft-start current, can reduce the AC input impact efficiency
- Compact size and lightweight
- 100% full-load burning test
- Installed with EMI filter, minimum wave
- Protection grade: IP67
|
|
|
